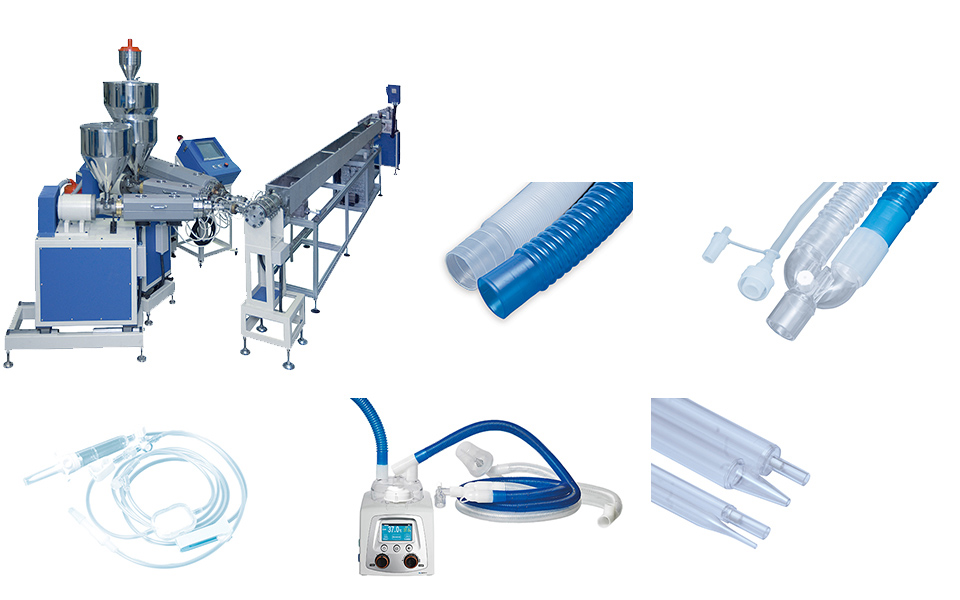

Multi-Layer Tubes for Medical
Precise resin distribution by advanced melting pump and integrated control system contributes to the medical industry which requires high precision and quality stability.
Application
- [Catheter, IV Solution, Serological Pipette, etc.]
Specifcation
| Tube EXT | Stripe EXT | Outer Layer EXT | Middie Layer EXT | Inner Layer EXT |
|---|
| Extruder |
|
20mm |
15mm |
50mm |
25mm |
25mm |
| Line Speed |
M/Min |
5~40 |
15~30 |
| Tube Dia |
Ø |
1 |
~15 |
| Electric Power |
Kw |
15 |
5Kw |
| Water Chiller |
|
40L/Min at 10℃ |
50L/Min at 10℃ |
| Dimension |
W × L × Hmm |
4000 × 1500 × 3000 |
3500 × 10000 × 2500 |
Multi-Layer Tubes for Cosmetics
As the first step, extruded sleeve quality is the most prior concern in cosmetics tube making process. Our unique designed 5-Layer head contributes excellent surface and precise distribution of each layer's thickness. Furthermore advanced technologies and controls will lead high productivity and saving costs.
Specifcation
| Mono-Layer
|
|---|
| Extruder |
|
70mm |
| Line Speed |
M/Min |
3~7 |
| Tube Dia |
Ø |
16~25 |
| Electric Power |
Kw |
45Kw |
| Water Chiller |
|
40L/Min at 10℃ |
| Dimension |
W × L × Hmm |
1500 × 6000 × 2500 |
Industrial Pipes / Hoses
Our long experience and accumulated technology will meet various needs of customers.
Superior durability and excellent perfomance enables broaden customers choice.
Application
- [Fuel Tube, Corrugated Optical Duct, Micro Duct, Braided Hose, etc.]
Specifcation
| Inner Duct | Outer Duct |
|---|
|
PE EXT |
Silicion EXT |
PE EXT |
| Extruder |
|
90mm |
60mm |
90mm |
| Line Speed |
M/Min |
8~15 |
0.8~1.5 |
| Tube Dia |
Ø |
20~50 |
30~200 |
| Electric Power |
Kw |
140 |
100 |
| Water Chiller |
|
80L/Min at 10℃ |
80L/Min at 10℃ |
| Dimension |
W × L × Hmm |
5000 × 15000 × 3300 |
4000 × 20000 × 33000 |
|
|
