ISBM Serise

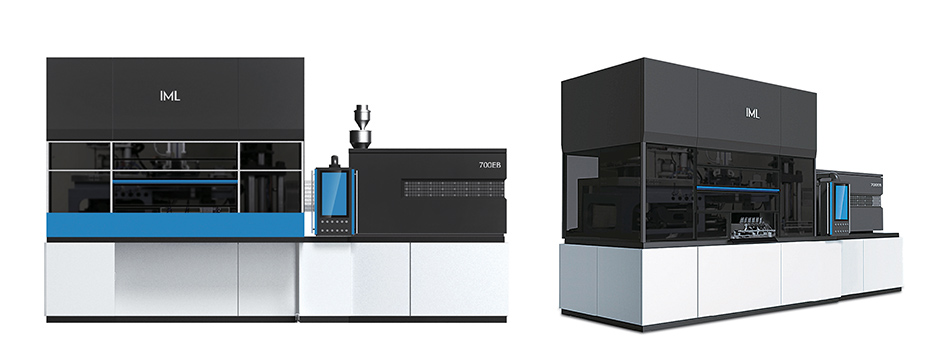

The world's first full electric ISBM with IML for PET bottles.
State-of-the-art technology and reliability ensure the highest profitability with high-efficiency and top-quality bottles.
And IML technology enables to produce unique and attractive design of bottles.
Features
- Full electric servo motor
- Up to 70% of energy saving against hydraulic system.
- Clean without oil and environmentally friendly
- No vibration and noise, safe operating environment
- Quick and easy mold exchange system

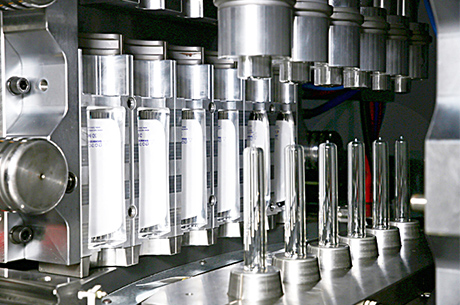

In-Mold-Label (IML)
- Accurate smooth control of movement
- Numeric control by servo motor up to 0.5mm deviation
- Precise movement adjust by feed rate control 0.01mm
- Accurate recyclable 3D labeling for both side
- Easily removing label (no glue or chemicals)

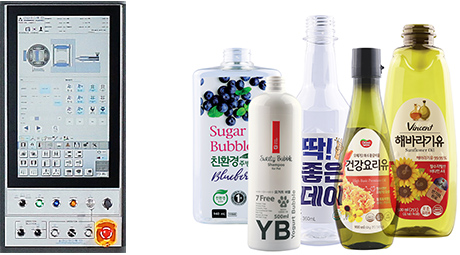

Controller
- 21.5" color touch screen
- B&R, Austria
- Easy to set and save parameters
- Multi lingual
Specification
| Model | SW-700EB | SW-400EB |
|---|
| Driving Power |
100% Electric Servo Motor |
100% Electric Servo Motor |
| Injection Capacity (Cm3) |
523 |
314 |
| Max. Cavities |
1~8 |
1~8 |
|
Max. Air Pressure (Bar)
|
40 |
40 |
| Blowing Pressure Condition |
P1, P2, P3(Cooling) |
P1, P2, P3(Cooling) |
| Actual Power Consumption (Kwh) |
16~22 |
14~18 |
| 1st Utility Power (Kwh) |
48 |
45 |
| IML Available |
Yes |
Yes |
|
Silk Screen & Thermal Transfer Printing
|
Yes |
Yes |
| Max. Blow Clamping Stroke (mm) |
400 |
400 |
| Cycle Time (Sec) (30g, 300ml, 6Cav' Based) |
15 (Without IML) 18 (With IML) |
15 (Without IML) 18 (With IML) |
| Blow Mold Clamping Type |
Crank Clamp |
Crank Clamp |
| Injection Mold Clamping Type |
Toggle Clamp |
Toggle Clamp |
| Lable Entry Direction of Lable |
Top Entry |
Top Entry |
| Max. Cavities(ea) |
2 |
4 |
6 |
8 |
2 |
4 |
6 |
8 |
| Max. Neck Diameter(mm) |
82 |
82 |
45 |
28 |
82 |
82 |
45 |
28 |
| Max. Body Diameter(mm) |
150 |
100 |
78 |
50 |
150 |
100 |
78 |
50 |
| Max. Height(mm) |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
| Machine Size (L × W × H) |
6.0m × 2.0m × 4.5m |
6.0m × 2.0m × 4.5m |
| Machine Weight (ton) |
16.0 |
15.0 |
※ Machine Specifications are subject to change without notice for improvement of performance.
|
|
